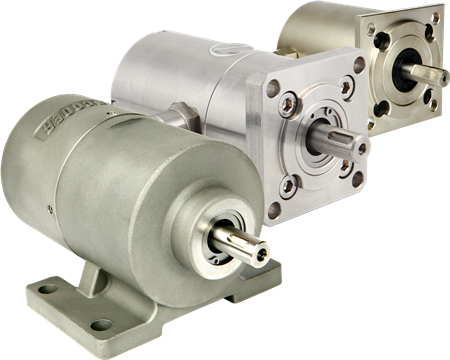

회전형 포스코더

POSCODER는 방수, 방진, 방습, 방열 등 완벽한 내구성을 자랑하며 센서 본체에 반도체를 비롯한 일체의 전자부품을 사용하지 않아 열악한 환경에서도 우수한 성능을 인정받고 있습니다.
회전형 포스코더는 비접촉형 절대위치 검출방식으로 제철, 제강, 타이어, 프레스 등의 산업분야에서 절대위치 검출 또는 각도 검출에 사용됩니다.

Single
Poscoder
Multi
Poscoder
Reel
Poscoder

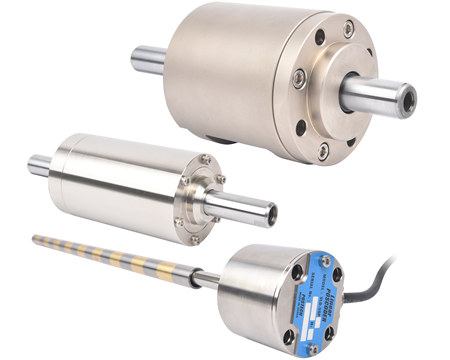

직선형 포스코더

POSCODER는 방수, 방진, 방습, 방열 등 완벽한 내구성을 자랑하며 센서 본체에 반도체를 비롯한 일체의 전자부품을 사용하지 않아 열악한 환경에서도 우수한 성능을 인정받고 있습니다.
직선형 포스코더는 제철소 현장의 정비 시간과 유지비용을 획기적으로 낮추기 위해 제철공정에 최적화하여 개발된 센서입니다. 직선 위치를 정확하게 검출하기 위한 목적으로 사용되며 높은 신뢰성과 내구성이 특징입니다.

Linear
Poscoder

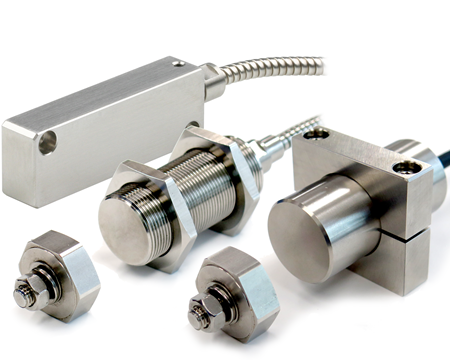

마그넷 센서

마그넷 근접 센서는 기존 유리관식 마그넷 스위치의 문제점을 획기적으로 개선한 근접스위치입니다. 방수, 방진, 방습, 방열 등 내구성 향상을 위해 SUS304 재질을 사용하였고 열악한 환경에서의 신뢰성 확보를 위해 센서와 AMP를 분리하였습니다.

Margnet
Sensor

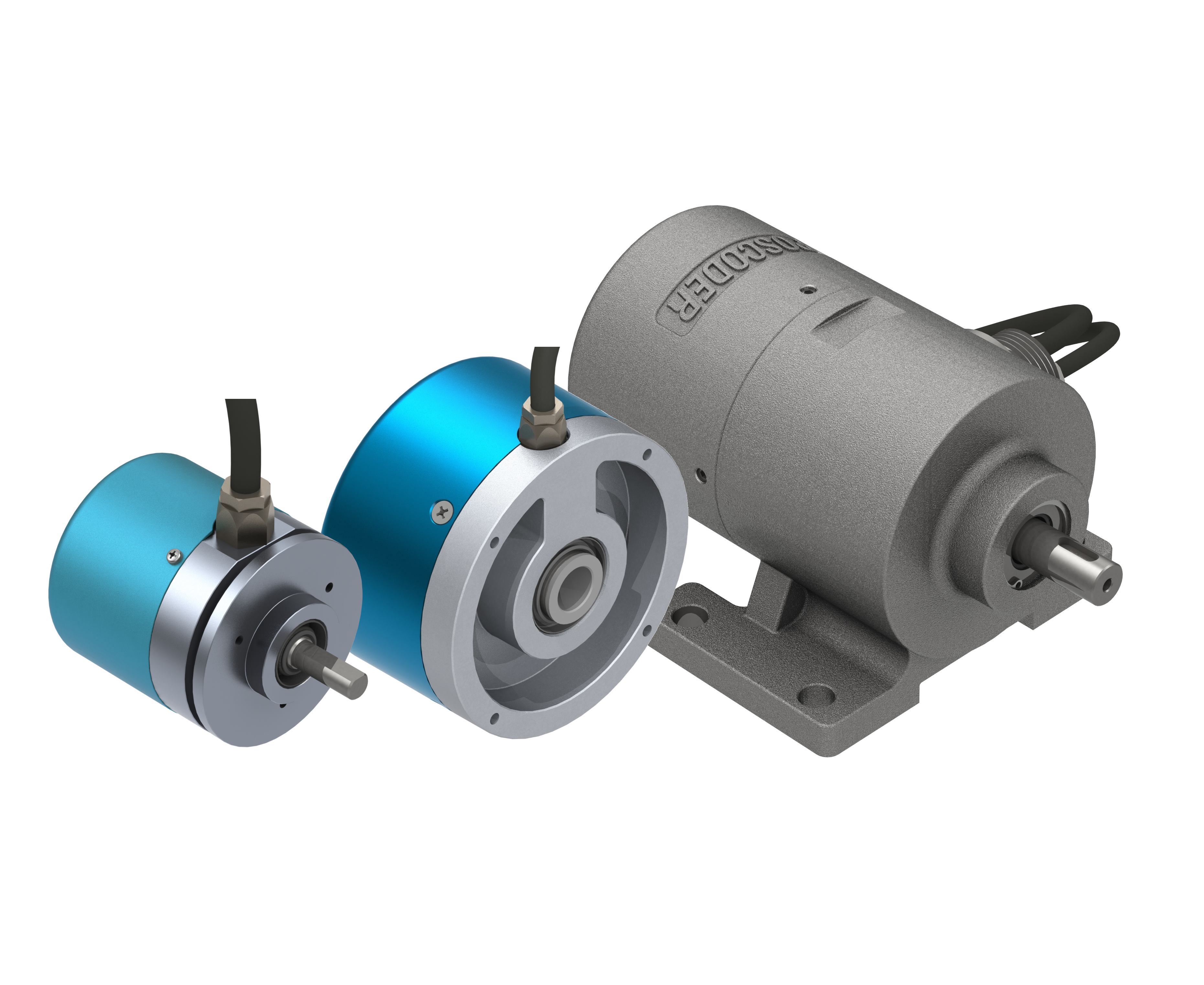

엔코더

마그네틱 엔코더 STE-S5는 일회전 절대위치 검출이 가능한 엔코더입니다. 검출된 절대위치 데이터는 Binary 혹은 Grary Code로 출력하며 자사의 POSCODER에 적용된 내진동 설계 기술을 적용하여 내구성이 뛰어납니다.

Margnet
Encoder

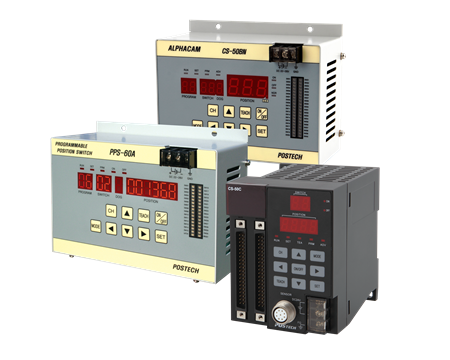

컨트롤러

기존에 기계식 캠스위치의 단점을 획기적으로 개선한 전자식 캠스위치 입니다. 간단한 조작으로 On/Off값을 설정하면 캠스위치 출력을 얻을 수 있습니다. 또한 다양한 형태(Binary, BCD, Gray Code)의 현재치 출력이 가능합니다. 자사의 회전형 센서를 사용하여 각도 및 위치를 검출합니다.

Single
Controller
Multi
Controller

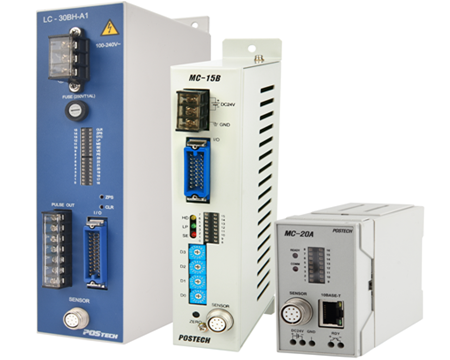

컨버터

센서의 위치데이터를 Binary, Gray Code 형태, 펄스의 형태로 출력합니다. 제품에 따라 Profibus, SSI, Ethernet 통신이 가능합니다.
센서와 Converter가 분리되어있기 때문에 신뢰성과 내구성이 높고 근접 스위치의 경우 현장에 가지 않아도 동작 거리 설정이 가능합니다.

Single
Converter
Multi
Converter
Linear
Amp
Magnet
Amp

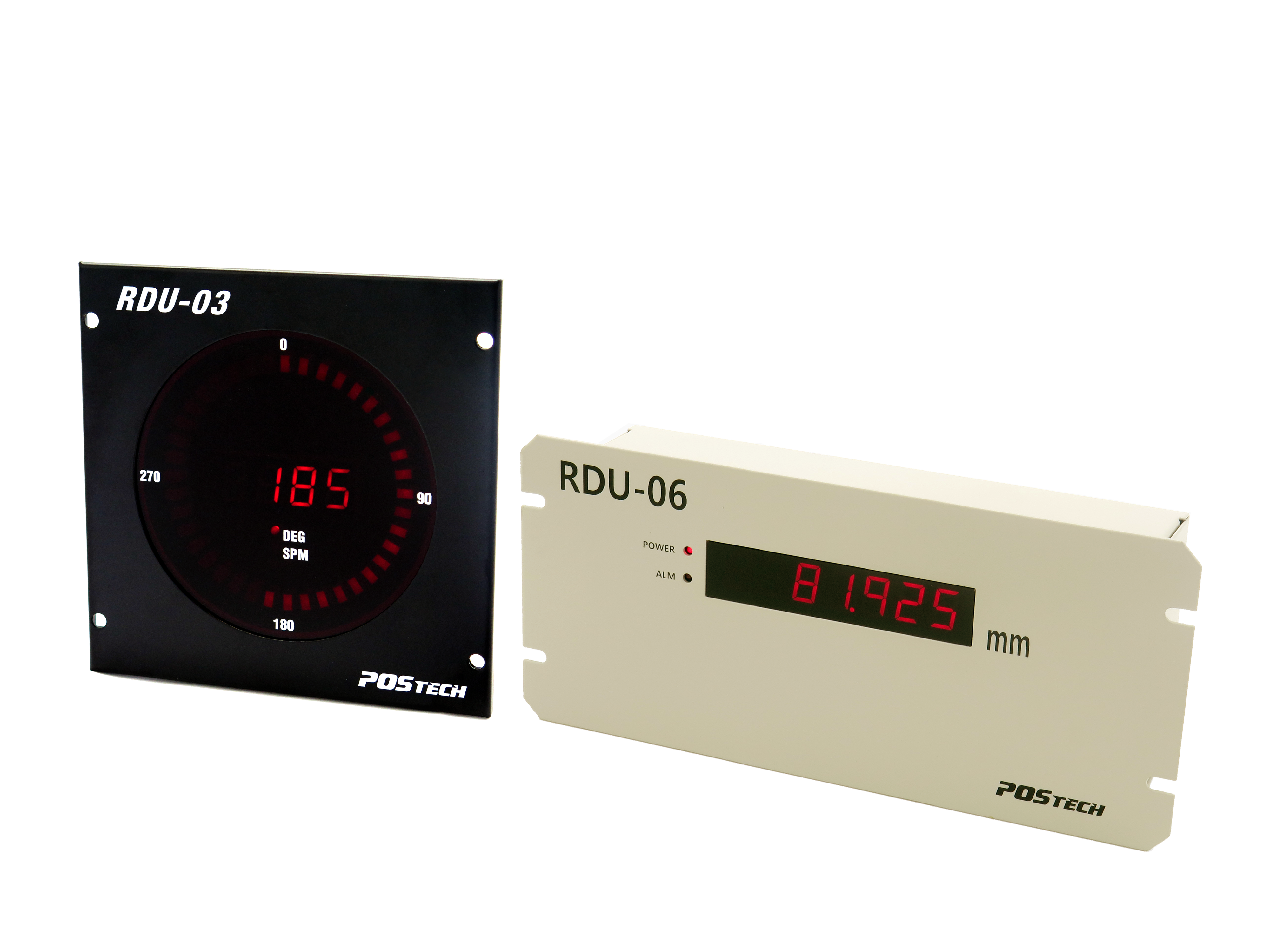

Display

디스플레이는 각도를 표시하는 RDU-03 모델과 이동거리를 표시하는 RDU-06 모델로 나뉩니다.
RDU-03 모델은 자사 1회전 회전형 센서의 각도와 회전속도를 표시할 수 있습니다.
RDU-06 모델은 자사 직선형 센서의 이동거리를 0.0001mm단위까지 표시할 수 있습니다.

Angle Position

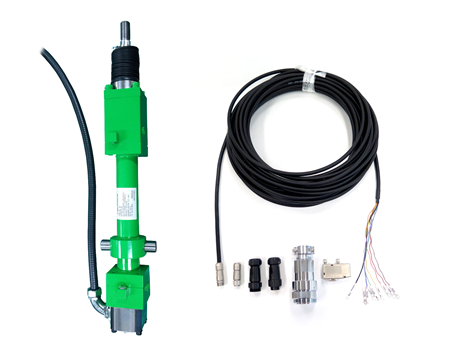

기타

현장에 설치된 센서와 컨트롤룸의 컨트롤러 및 컨버터 간 거리가 먼 경우 연장케이블을 사용할 수 있습니다. 다양한 형태의 커넥터 및 단자를 고객의 요구에 맞게 제작해드립니다.
자세한 사항은 자사 제품 취급설명서에 연장케이블 선정법 부분을 참조하시거나 회사로 문의바랍니다.

Extension
Cable
Cylinder

Rotary POSCODER

POSCODER provides excellent durability including water-proof, dust-proof, damp-proof and heat-proof.
Since its main body does not use any electronic part, its excellent performance has been recognized for its excellent performance in harsh environments.

Single
Poscoder
Multi
Poscoder
Reel
Poscoder

Linear POSCODER

POSCODER provides excellent durability including water-proof, dust-proof, damp-proof and heat-proof.
Since its main body does not use any electronic part, its excellent performance has been recognized for its excellent performance in harsh environments.
The linear sensor mounted inside the cylinder is a semi-absolute type that detects changes in magnetoresistance.
The sensor consists only of a coil without an electronic circuit.
As a result, it is stable in operation such as steel manufacturing equipment in various extreme environmental conditions such as high temperature of 120 ℃., vibration, shock, water and oil.

Linear
Poscoder

Magnet Sensors

Magnet sensor is a magnet switch which problems of the existing glass-tube type magnetic switch are considerably enhanced. It uses SUS 304 material to provide excellent durability including waterproof, dust-proof, damp-proof and heat-proof.
The MGP sensors enable the forced output function in emergency situation, the operation status and positioning functions by separating the sensor from the controller.

Margnet
Sensor

Encoder

The STE-S5 is a rotary magnetic encoder designed for use in harsh environments.
Output signals are provided in industry standard absolute position format.
Also, its body is so compact and provides dirt immunity up to IP65.

Margnet
Encoder

Controllers

ALPHACAM is an electronic cam switch that replaces the traditional mechanical cam switch, allowing the keypad to simply set the on / off angle and provide many switch outputs. ALPHACAM can output high-precision position data by converting absolute position data to binary code or gray code using POSCODER, a rotary absolute position sensor.

Single
Controller
Multi
Controller

Converters

Convert the output position data by converting absolute position data to binary code or gray code or pulse. Profibus, SSI, and Ethernet communication are available depending on the product.
The sensor and converter are separated for high reliability and durability. For proximity switches, you can set the working distance without going to the spot.

Single
Converter
Multi
Converter
Linear
Amp
Magnet
Amp

Display

The rotation angle indicator RDU-03 displays the current angle and rotation speed of a single rotary rotary sensor.
RDU-06 is a travel distance indicator of high precision linear sensor and can display up / down signal up to 0.001mm.

Angle Position

Others

Extension cables can be used if the distance between the sensor installed in the field and the controller or converter installed inside the control room is far. For more information, please refer to the manual or contact us.

Extension
Cable
Cylinder
