Controller / Converter
MC-15B outputs high-accuracy position data of 2¹⁶(65536, 16 bit) from 32 turns to 320 turns by converting absolute position data into a binary code or gray code with a POSCODER, which is multi-turn type absolute position sensor. In addition, it can set zero simply and output exact position data via synchronization even when interfacing data with a parent unit.

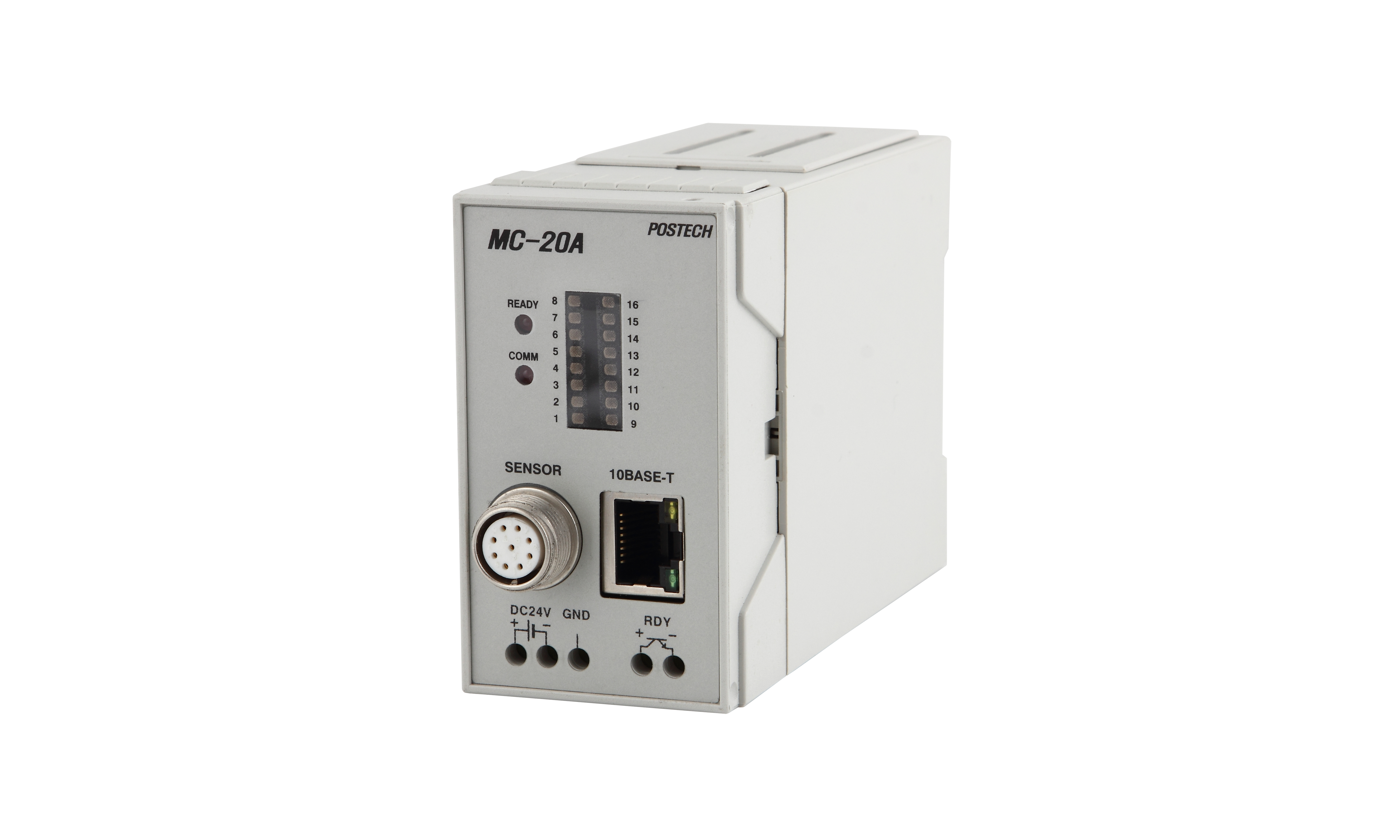

MC-20A sends absolute position data from 32 turns to 320 turns to a PLC through Ethernet TCP communication protocol by using a POSCODER which is a multi-turn absolute position sensor. Up to 4 multiple accesses are allowed by using a hub.

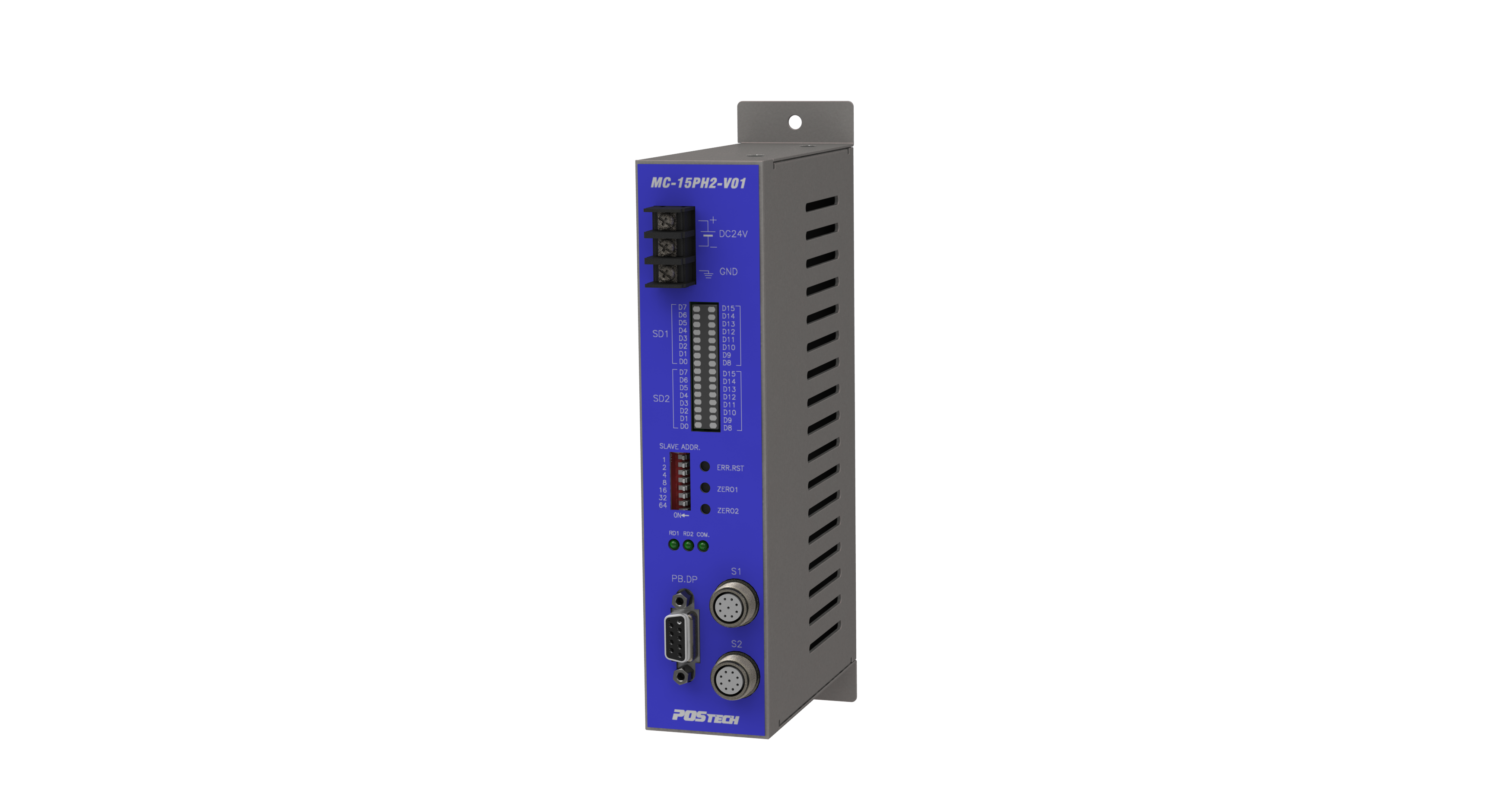

MC-15P2 searches the position data of a unit to be detected in absolute positioning method by using an absolute position sensor (POSCODER) and transmits data to the PLC via Profibus communication.
